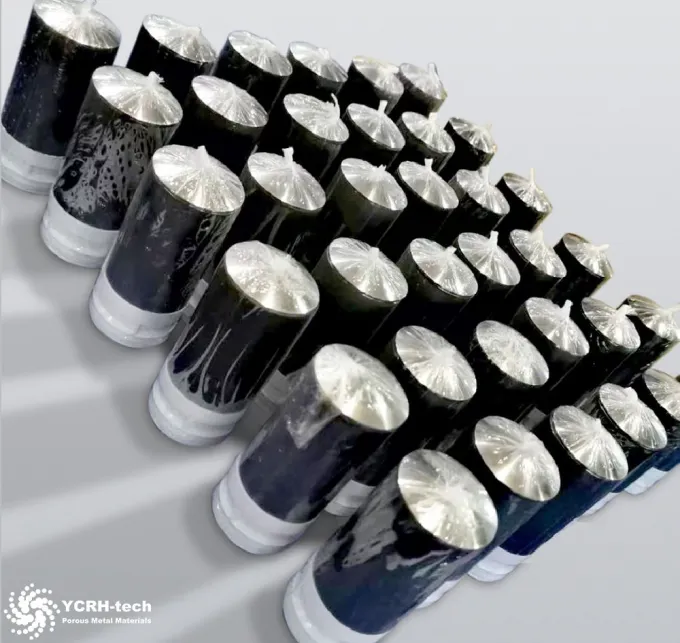

Metal Powder Sintered Porous Elements Ycrh-AsP

1) Features

The outer surface of the filter element has smaller channels than the inner surface, so the probability of solid particles entering the through-hole is lower.

This element filter of sintered membrane combines high permeability and low pressure drop, so the system pressure difference increases more slowly, and the service life of filter elements are extended relatively.

The following types of sintered membrane can be chosen based on different requirements:

Asymmetrical membrane bonded to the metal powder porous carrier (co-pressing technique), membrane thickness: 300~500 μm

Asymmetrical membrane bonded to the metal powder porous carrier (coating technique), membrane thickness: 200~300 μm

Asymmetrical membrane bonded to the metal mesh porous carrier (coating technique), membrane thickness: 150~300 μm

Asymmetrical membrane bonded to the Ti porous carrier (in-situ reactive technique), membrane thickness: 5~10 μm

2) Properties

High shape stability

Suitable for high differential pressures

Thermal stability up to 800°C

High corrosion resistance

High permeability and low pressure drop

Small range of pore size distribution

Easily cleaned and back-flushed

Welding and machining are possible

3) Specifications

Filtration Grade: 0.1 μm, 0.2 μm, 0.3 μm, 0.5 μm, 1.0 μm, 3.0 μm, 5 μm

Geometric dimensions: The longest seamless filter tube is 1200 mm with the diameter 15~85 mm.

Connection: thread, flange, flat pressing, quick connection, etc.

Material Selection: 316L; 304L; 310S; 321, 904L; Hastelloy alloys; Inconel 600; Inconel 625; Monel 400; Sintered Ti5Si3 membrane only with Ti porous carrier

Note: Special element can be customized according to requirements.
