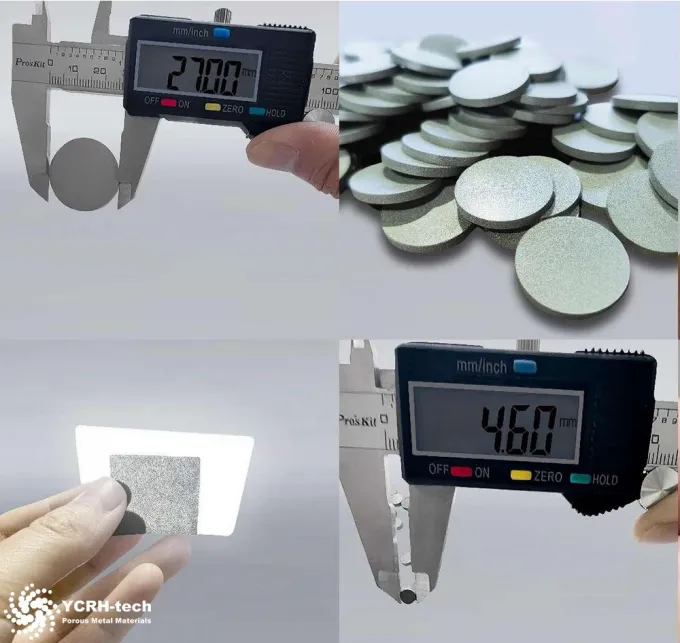

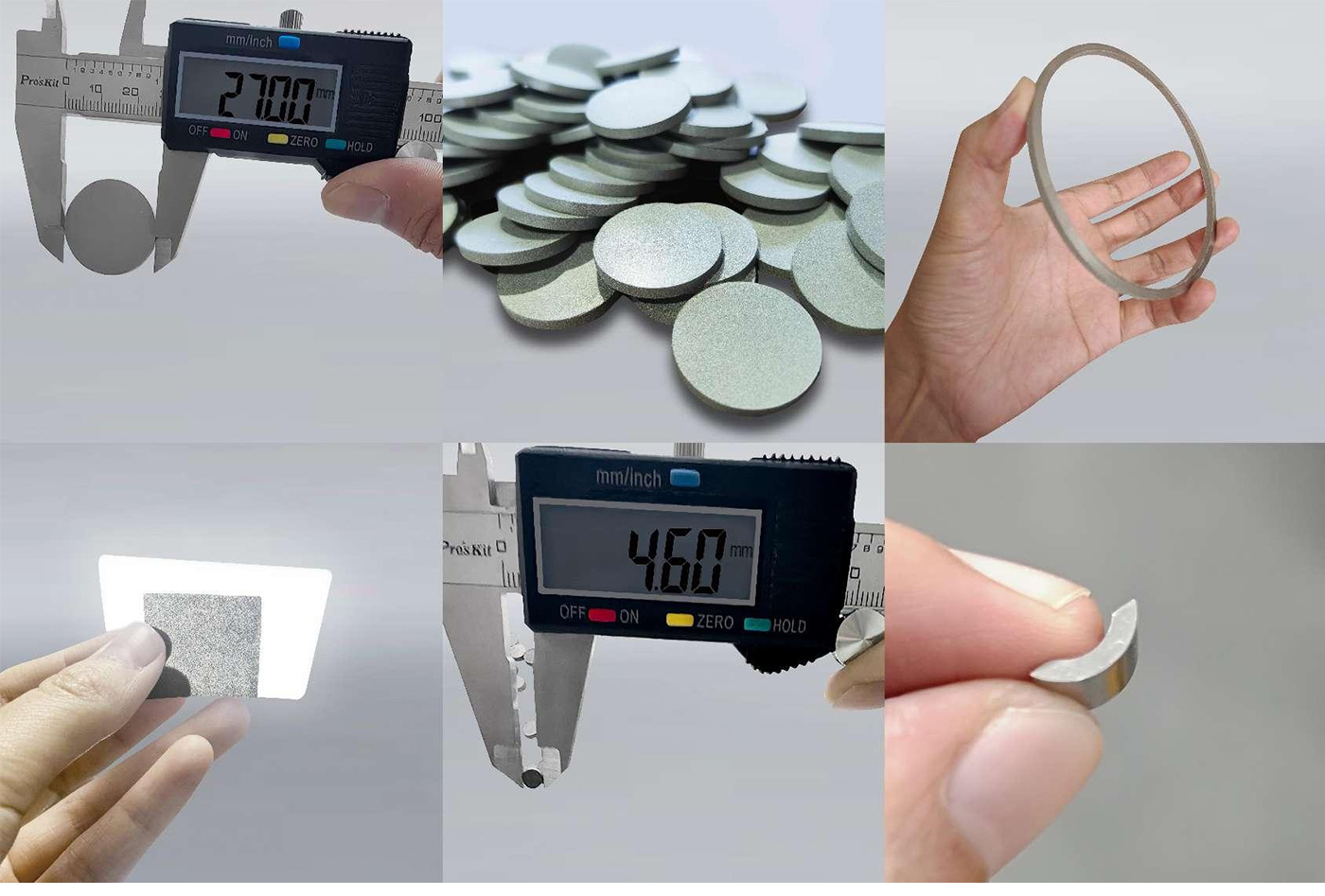

Sintered Porous Metal Discs
Sintered porous metal discs can be applied in the systems of filtering, flow-restriction and gas-distributions. They are fabricated by a compressing technique combined with high-vacuum sintering. The discs offer advantages like high strength, temperature resistance, chemical stability, and the ability to withstand high pressures.
Specifications
Filtration Grade: 0.1 μm, 0.3 μm, 0.5 μm, 1.0 μm, 3.0 μm, 5 μm, 8 μm, 10 μm, 15 μm, 20 μm, 30 μm, 50 μm
Geometric dimensions: The disc diameters are 0.4~100 mm with the thickness of 0.5~10 mm.
Material Selection: 316L; 304L; 310S; 321, 904L; Ti; Hastelloy alloys; Inconel 600; Inconel 625; Nickel based alloys
Note: Special element can be customized according to requirements.
